2.5D Depth Studio

Generate a 2.5D (parallax/mesh) effect from a single input image: the backend produces depth map + layers + depth_data, and the frontend renders layer parallax or mesh displacement (Three.js) for a smooth 3D feel.

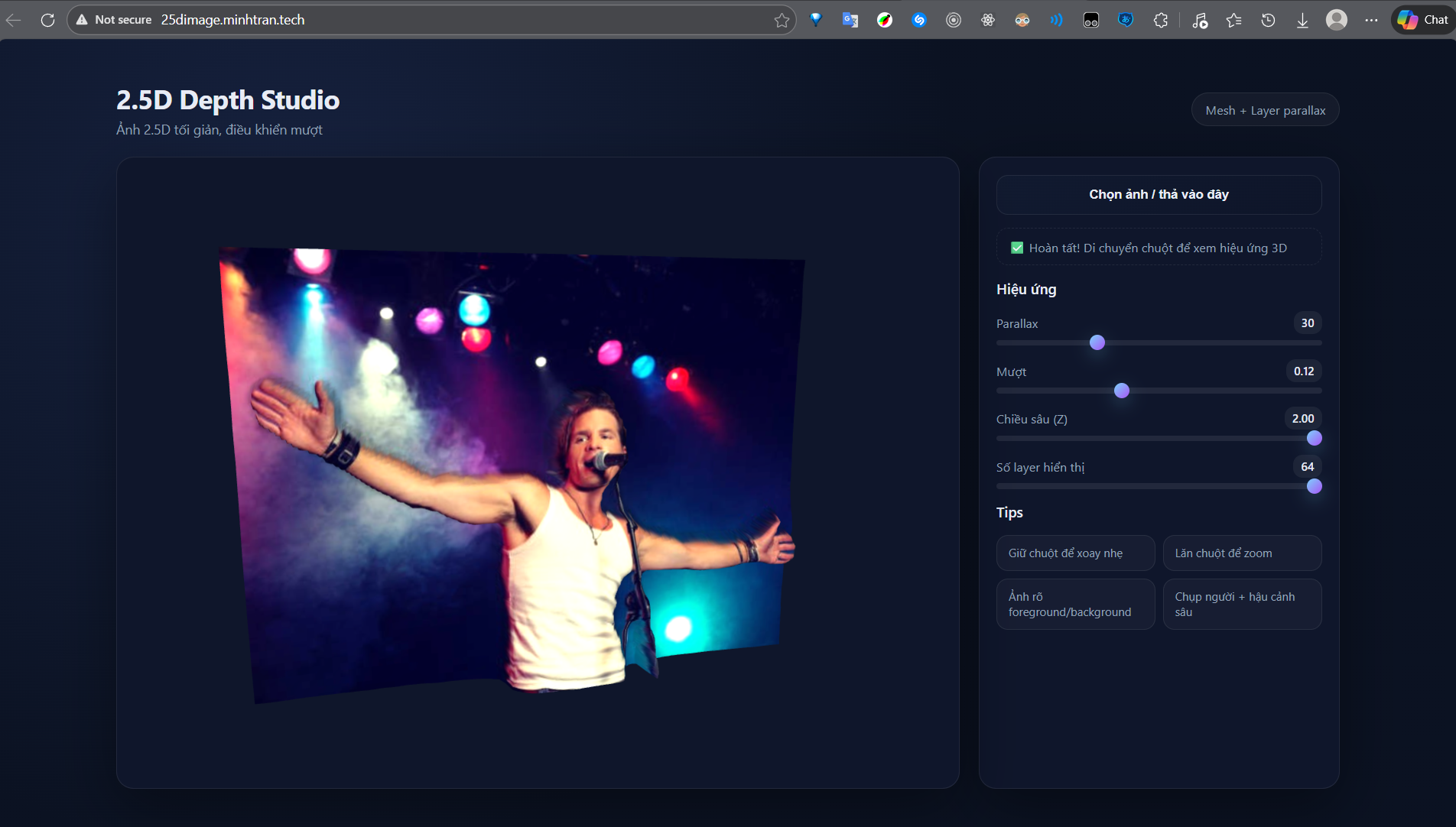

Demo output Original input

</div>

Links

  • —Live demo (FE): <http://25dimage.minhtran.tech/>
  • —Backend endpoint (POST): <https://nermadie-2-5d-depth-studio.hf.space/api/process>
  • —Hugging Face Spaces: <https://huggingface.co/spaces/nermadie/2.5DDepthStudio>

Features

  • —Depth estimation using DPT (Transformers) with model selection + fallback.
  • —Multi-layer separation by depth (foreground → background) + backplate for depth continuity.
  • —Exports layers[] (base64 RGBA PNG) for layer-parallax and depth_data (matrix in [0..1]) for mesh displacement.
  • —Minimal UI controls: parallax, smoothness, Z-depth intensity, layer count.

Architecture

  • —backend/: FastAPI image processing, depth + layers generation, JSON response.
  • —frontend/: static UI (HTML/CSS/JS) rendering layers/mesh.
  • —2.5D_Depth_Studio/: Docker-based setup for Hugging Face Spaces.

Basic flow:

1) Frontend uploads an image → POST /api/process 2) Backend runs depth + layer separation 3) Frontend renders (mesh or layers)

2.5D technique (technical)

This project has two renderers, both driven by a predicted depth map.

1) Depth estimation (DPT)

  • —The backend uses DPTImageProcessor + DPTForDepthEstimation (prefers Intel/dpt-large, falls back to Intel/dpt-hybrid-midas).
  • —DPT outputs relative depth (not meters), so the project normalizes it to [0..1] for consistent downstream use.

After depth is predicted, the backend boosts local contrast so the effect reads better:

  • —CLAHE (increase local contrast)
  • —Bilateral filter (smooth noise but preserve edges)
  • —Normalize back to [0..255] for post-processing

2) Mesh displacement (Three.js) — smooth, shape-faithful 3D

If the response has use_mesh: true and includes depth_data, the frontend renders a mesh:

  • —Create a PlaneGeometry(width, height, segments, segments).
  • —For each vertex, map to depth coordinates and displace Z by:

$$z = depth(x,y) \times depthScale$$

  • —Texture uses the original image → subtle mouse tilt creates the 3D feel.

Pros:

  • —Looks great, continuous and natural motion.

Trade-offs:

  • —More GPU/CPU cost (many segments + WebGL rendering).

3) Layer parallax (CSS layers) — lightweight and compatible

If mesh is not used, the backend returns layers[] (RGBA PNGs). The frontend:

  • —Sorts layers from far → near.
  • —Moves each layer with the mouse, scaled by the layer depth.

Intuition: layers closer to the camera move more; distant layers move less.

4) Layer separation (depth slicing)

The backend separates layers using percentile-based depth thresholds:

  • —Allocate more layers to the background (smoother detail), fewer to the foreground.
  • —Build a mask per depth range, then soften edges (morphology + Gaussian blur) to avoid jagged outlines.
  • —For the first few background layers, inpaint occluded regions so parallax doesn’t reveal holes.

How to use (quick workflow)

1) Open the demo: <http://25dimage.minhtran.tech/> 2) Upload an image 3) Move your mouse (or drag on mobile) to see the effect 4) Tune parallax/smoothness/depth intensity per image

API

POST /api/process

  • —Form-data: file (image)
  • —Response (short):
  • —image: normalized image (base64)
  • —depth: depth visualization (base64)
  • —depth_data: number[][] normalized to [0..1]
  • —layers: list of RGBA PNG layers (base64)
  • —width, height, use_mesh

GET /

Returns service status + device.

Run locally

Backend

bash
cd backend
python -m pip install -r requirements.txt
uvicorn app:app --host 0.0.0.0 --port 8000 --reload

Frontend

bash
cd frontend
python -m http.server 5173

Open http://localhost:5173.

Note: change API_URL in frontend/app.js to http://localhost:8000/api/process if you run the backend locally.

Docker / Hugging Face Spaces

This repo includes the Spaces metadata at the top of this file and a Dockerfile in the Spaces root.

Quick build/run:

bash
cd 2.5D_Depth_Studio
docker build -t depth-studio .
docker run -p 7860:7860 depth-studio

Quality tips

  • —Clear foreground/background separation → better depth feel.
  • —If responses are heavy (large depth_data), reduce input resolution or downsample depth.
